Hydraulic Pile Cutter for Precise Concrete Pile Head Trimming

Built for efficient hydraulic pile trimming, this machine helps remove pile heads with better control, lower labor intensity, and more consistent foundation preparation results.

As a professional manufacturer of Hydraulic Pile Cutter, we provide more cost-effective products. Whether you want to buy or become a distributor, you are welcome to contact us anytime.

Cable Drum Trailer

Hydraulic Pile Cutter gives contractors a more efficient way to trim and remove concrete pile heads on foundation projects. It uses hydraulic force to work around the pile evenly, which helps crews separate the upper concrete section with better control than manual methods. This supports cleaner pile preparation and helps the next construction stage move forward more smoothly.

A Hydraulic Pile Cutter is well suited to cast-in-place pile treatment on building foundations, bridges, transport projects, industrial sites, and other civil works. It helps site teams improve consistency when many piles need the same cutoff process. The machine also supports cleaner rebar exposure and can reduce unnecessary cracking or damage around the remaining pile body. For contractors, that means less physical effort, faster workflow, and more predictable results on site.

Compared with slower pile head removal methods, a Hydraulic Pile Cutter improves site productivity and makes the overall process easier to manage. It helps crews handle repetitive trimming work with better efficiency and a more professional finish. For companies looking for a dependable solution for concrete pile head cutting, this equipment offers a practical combination of speed, control, and jobsite reliability.

PZJ Pile Breaker Specifications

Product Model	Working Pressure	Maximum Breaking Force	Safe Stroke	Chisel Diameter	Pile Breaking Height
PZJ	35	60	200	110	≤500

Applicable Carrier (t)	Recommended Flow (L/min)	Single Pile Breaking Time (s)	Pile Diameter (mm)
20–30	200	20–50	600–800
20–30	200	20–50	800–1000
20–30	200	20–50	1000–1150
20–30	200	20–50	1150–1300

Applicable Carrier (t)	Recommended Flow (L/min)	Single Pile Breaking Time (s)	Pile Diameter (mm)
30–40	300	30–60	1300–1480
30–40	300	30–60	1500–1650
30–40	300	30–60	1650–1800
30–40	300	30–60	1800–1980
30–40	300	30–60	2000–2200

Applicable Carrier (t)	Recommended Flow (L/min)	Single Pile Breaking Time (s)	Pile Diameter (mm)
40–50	350	30–80	2200–2350
40–50	350	30–80	2350–2500
40–50	350	30–80	2500–2650
40–50	350	30–80	2650–2800

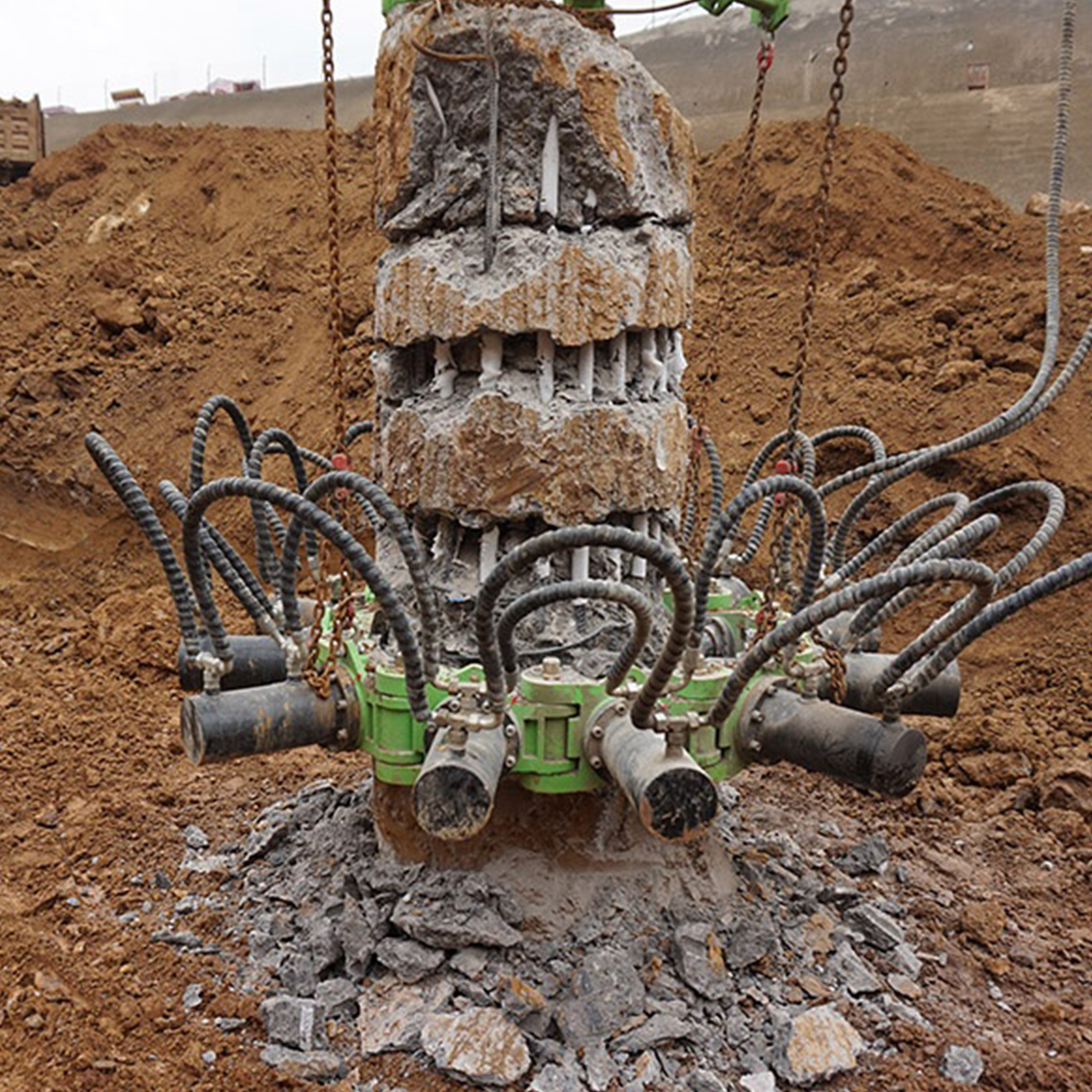

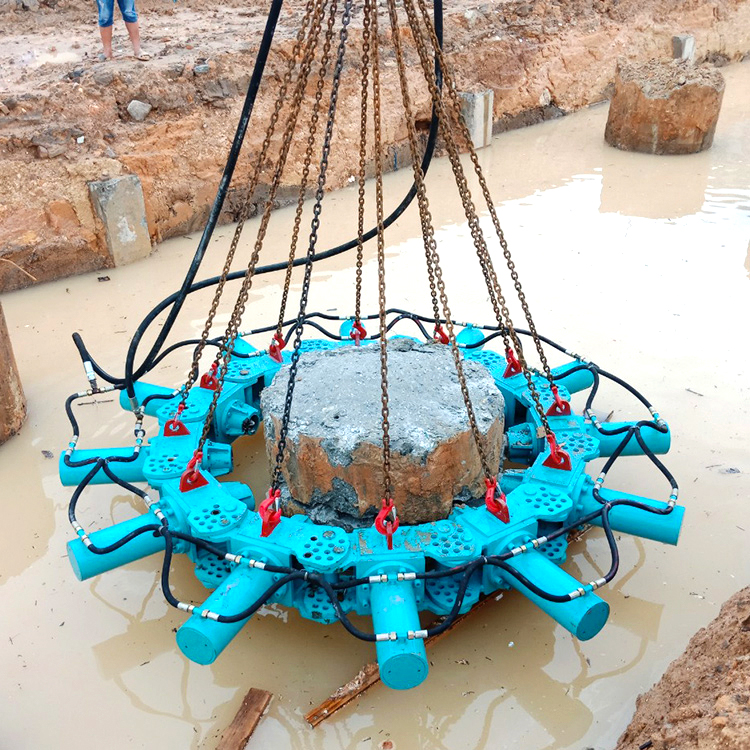

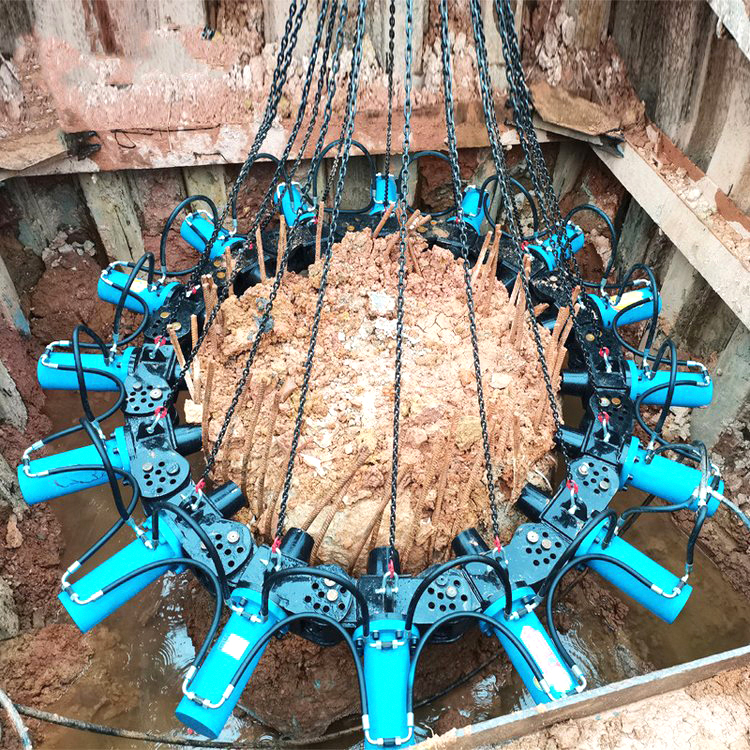

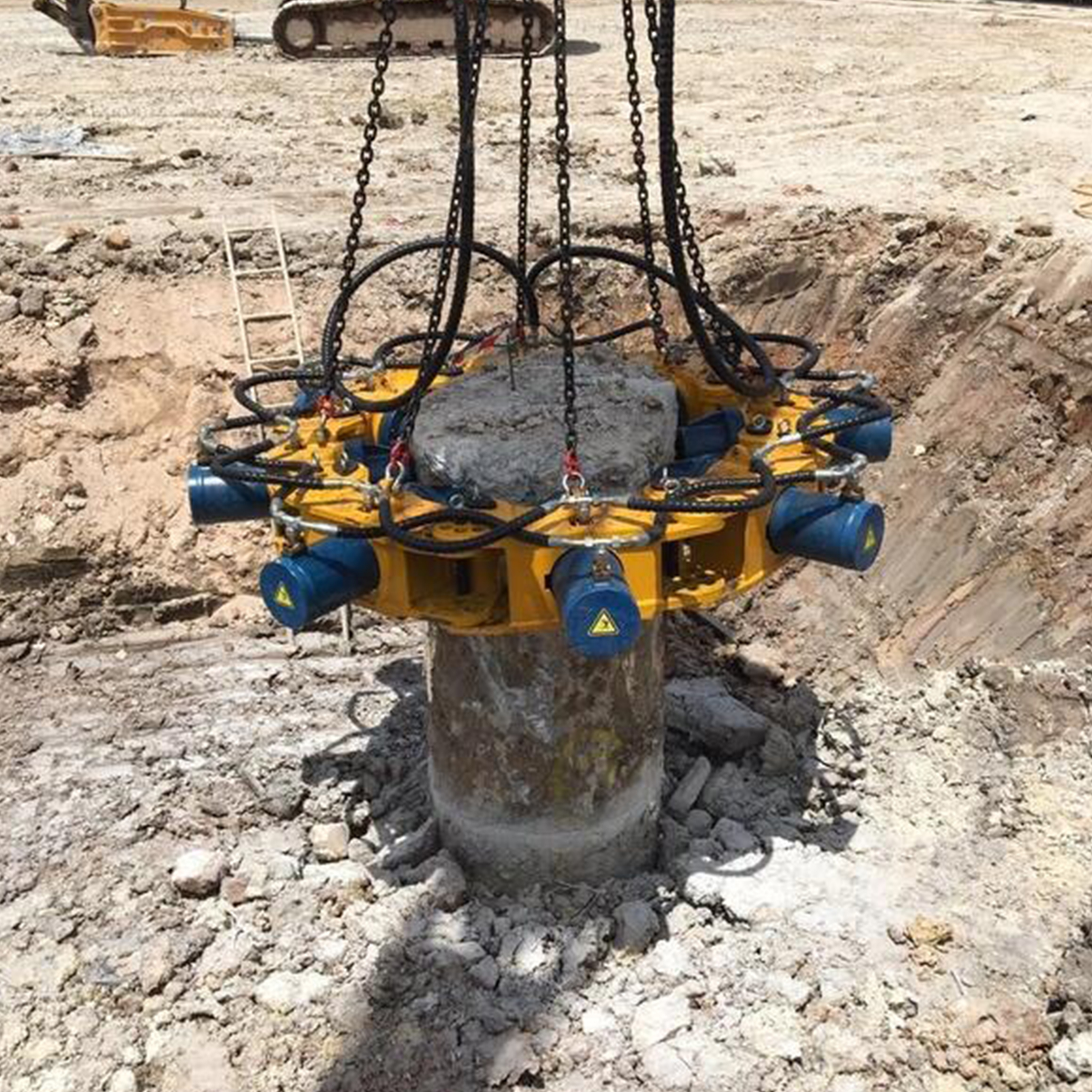

The hydraulic pile breaker is lifting and breaking a large concrete pile head inside a deep excavation pit.	A concrete pile breaker is operating in a muddy jobsite to remove the top section of a round foundation pile.	The pile cutter is removing a concrete pile head on a dry construction site with clear access around the pile.	A pile head breaker is crushing a reinforced concrete pile head and exposing the internal rebars.

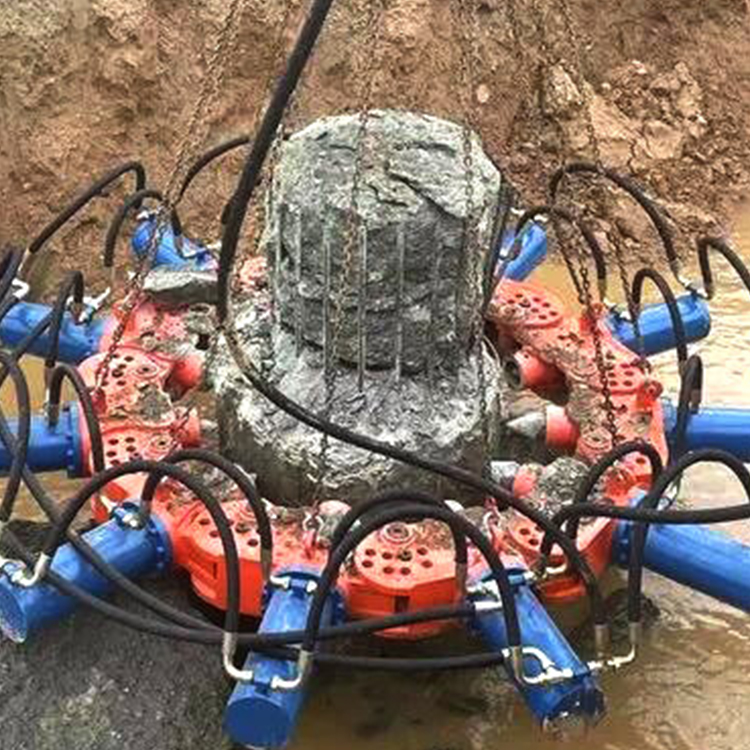

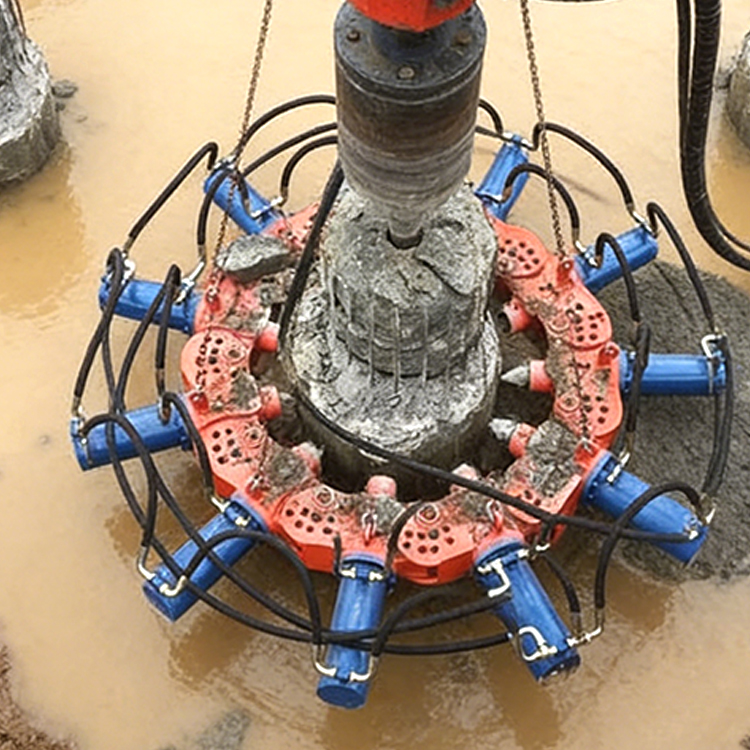

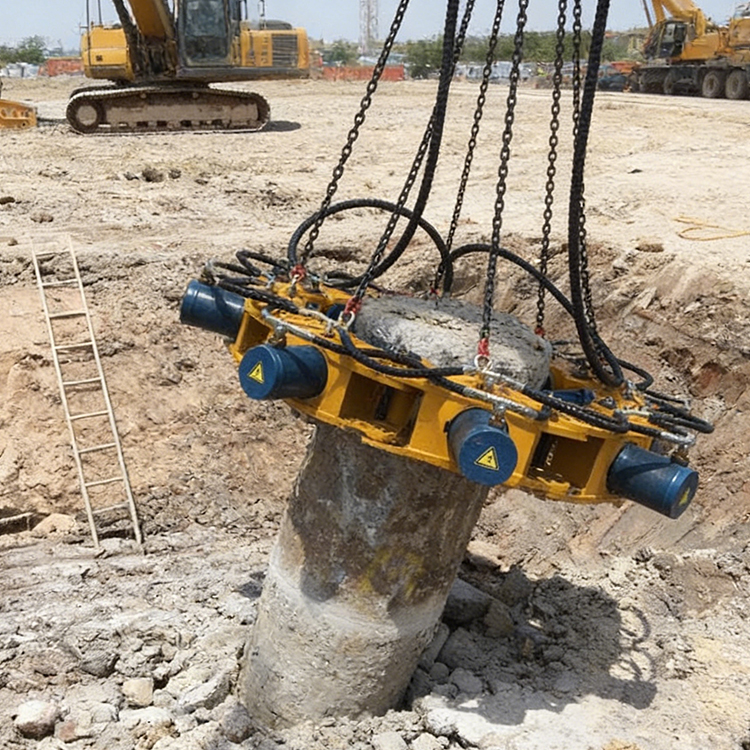

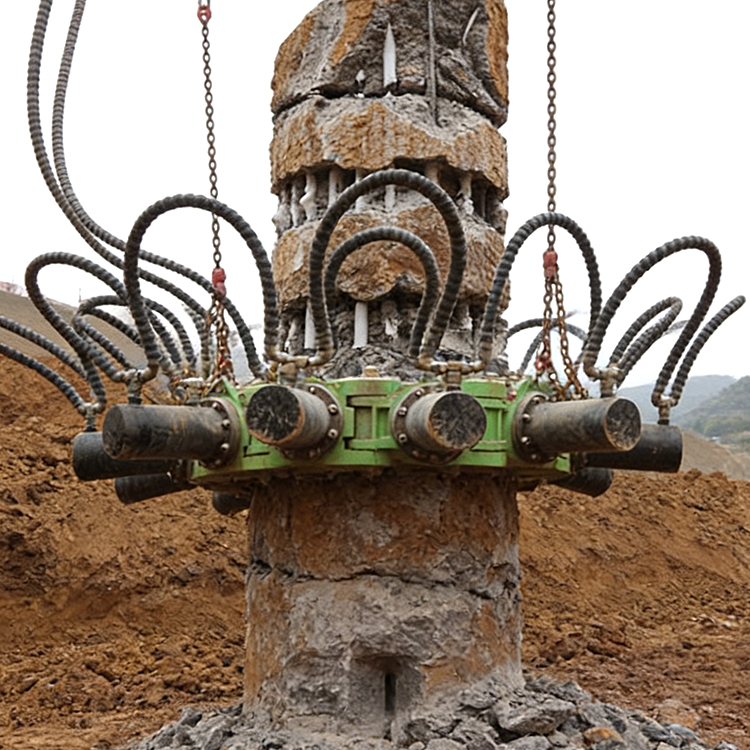

The hydraulic pile cutter is breaking a concrete pile head in a waterlogged excavation area.	Top view of a concrete pile cutter working around a pile head during foundation pile trimming.	The pile cropper is lifting a separated pile head from a cast-in-place concrete pile.	Front view of a pile crusher breaking a reinforced concrete pile head on a construction site.
