Vertical Cutter Head for Precision Wall Milling

The vertical cutter head is built for precise wall milling, slot cutting, and face profiling. It gives excavators a focused cutting solution for vertical applications and detailed excavation work.

As a professional manufacturer of Vertical Cutter Head, we provide more cost-effective products. Whether you want to buy or become a distributor, you are welcome to contact us anytime.

Cable Drum Trailer

A vertical cutter head gives excavator operators a more focused solution for milling and shaping vertical or near-vertical surfaces. It is a strong choice for jobs that require accurate face work, slot preparation, or wall edge correction. Contractors often select this kind of cutter head when they need clean cutting lines and better control on upright structures. The attachment supports detailed excavation without relying on rough impact methods alone.

This vertical cutter head can be used for retaining face trimming, narrow slot work, shaft wall correction, and surface preparation in restricted areas. The cutting action helps crews manage the work area more precisely and follow the target profile with greater consistency. That is useful on projects where the excavator operates close to concrete, rock faces, or fixed construction elements. A controlled cutter head helps improve the quality of wall and face finishing.

The vertical cutter head also fits contractors who handle foundation work, municipal repair, tunnel adjustment, and demolition support. It serves customers who need a dedicated cutting option for detailed vertical applications rather than a broad general-purpose tool. Distributors can present this product as a specialized excavator solution for projects that value clean profiles and accurate material removal.

For businesses that supply equipment to technical excavation markets, a vertical cutter head offers clear positioning. It combines precise application focus with real jobsite usefulness, making it a practical choice for wall milling, face shaping, and controlled cutting work.



Parameter Model

Product Model

ZX-1 ZX-2 ZX-3 ZX-4
Suitable Carrier (t) 6–9 10–18 20–27

30–40

Operating Weight (kg)

340 480 900 1100
Milling Head Diameter (mm) 400 450 550

580

Number of Picks

28 32 44 48
Recommended Speed (rpm) 80 80 75

65

Recommended Flow (L/min)

75 120 200 260
Max. Pressure (MPa) 28 31 35

35

Max. Torque (Nm)

4000 8000 14600 23000
Components / Brands Rexroth Motor, SKF Bearings, Tungsten-Molybdenum Alloy Picks, 20CrMnTi Gears Rexroth Motor, SKF Bearings, Tungsten-Molybdenum Alloy Picks, 20CrMnTi Gears Rexroth Motor, SKF Bearings, Tungsten-Molybdenum Alloy Picks, 20CrMnTi Gears

Rexroth Motor, SKF Bearings, Tungsten-Molybdenum Alloy Picks, 20CrMnTi Gears

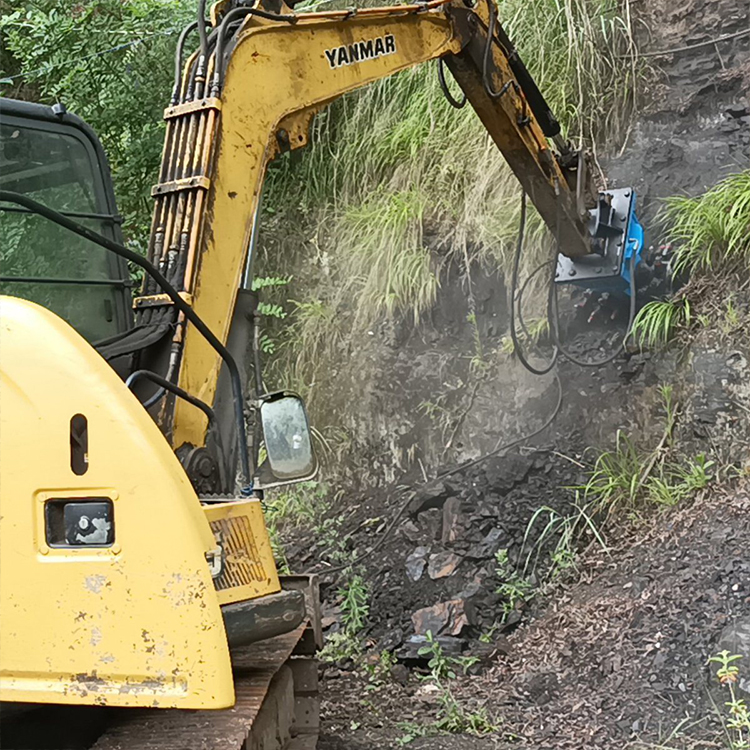

excavator drum cutter milling rock slope on jobsite
The excavator drum cutter is trimming and milling a rocky slope in a hillside jobsite.

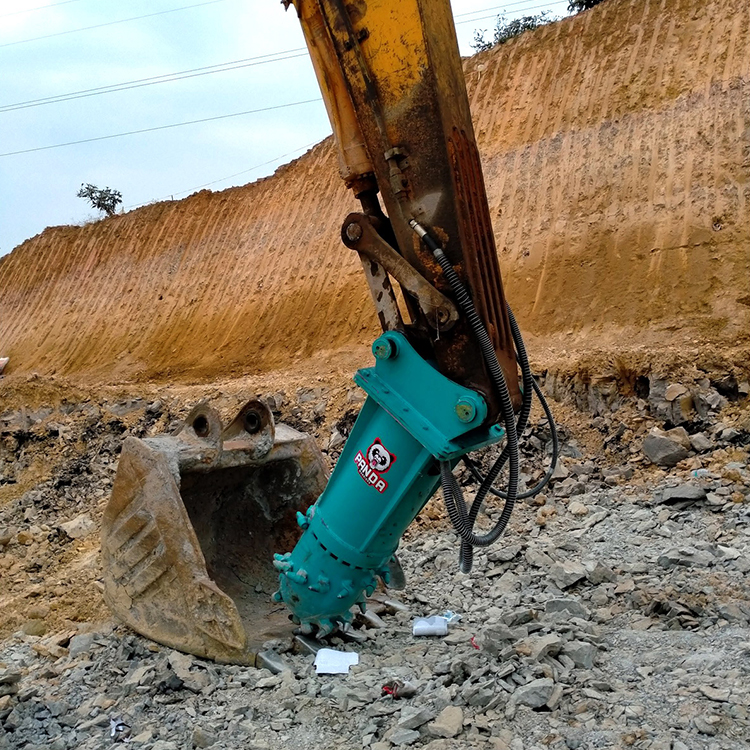

drum cutter attachment breaking rock in excavation site
The drum cutter attachment is breaking and shaping rock material in a rough excavation area.

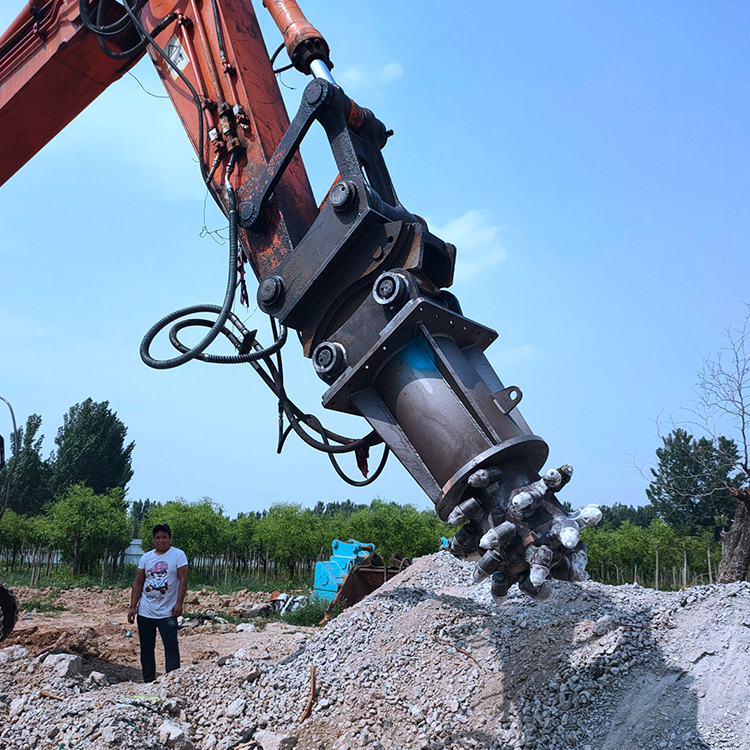

hydraulic rock grinder attachment working on rubble
The hydraulic rock grinder is cutting through rubble and compact material under a large excavator.

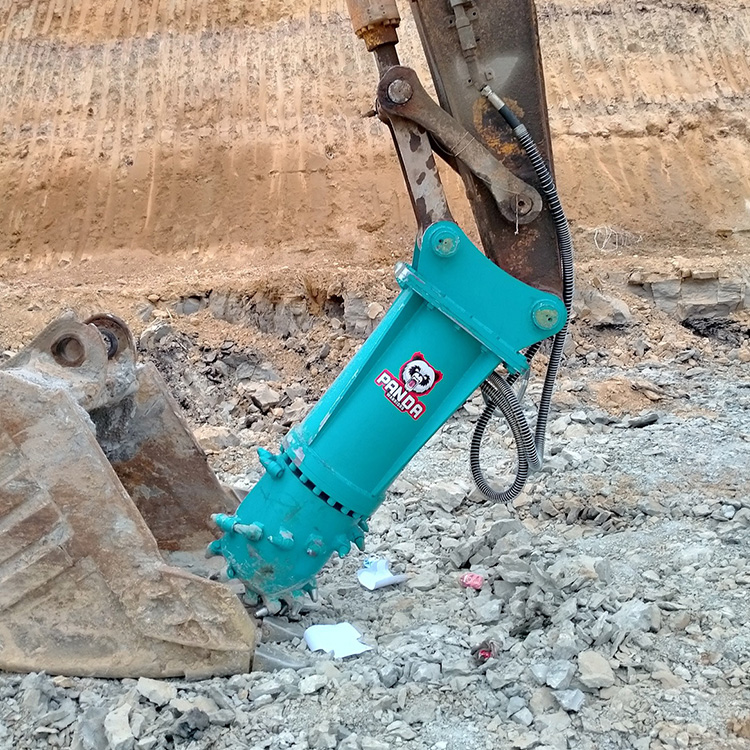

milling attachment cutting rocky ground with excavator
The milling attachment is cutting into rocky ground for precise excavation and material removal.

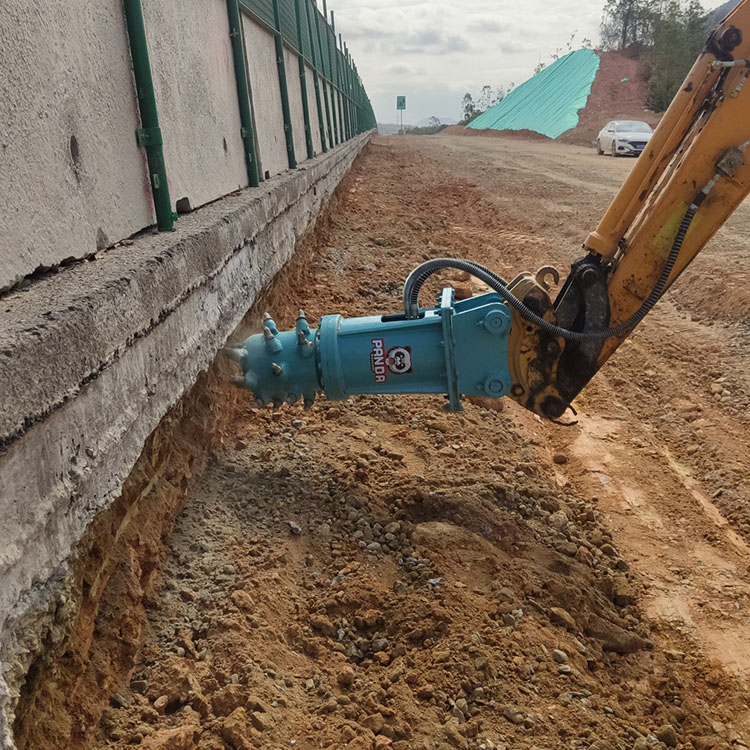

axial drum cutter trenching beside retaining wall
The axial drum cutter is trenching along a retaining wall with controlled cutting depth.

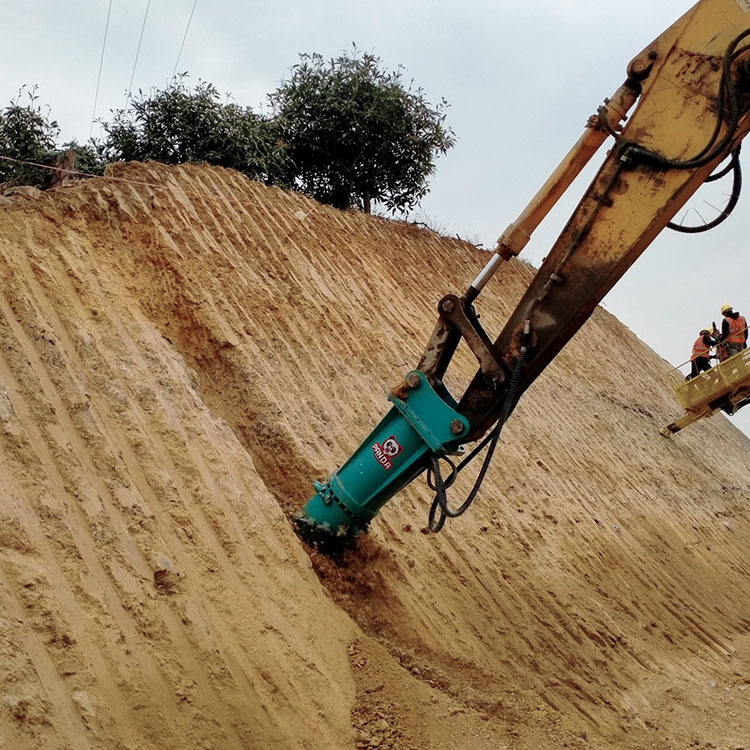

vertical cutter head trimming steep earth slope
The vertical cutter head is trimming a steep slope for cleaner profiling and stabilization work.
